XR Simulation project settings

Understand the project settings and XR Simulation settings you can configure.

The following sections outline the Project settings and XR Simulation settings you can configure in your XR Simulation project.

Project settings reference

Go to Edit > Project Settings > XR Plug-in Management > XR Simulation to tune the performance of XR Simulation according to your project's needs. XR Simulation project settings are saved under your Assets folder at XR/Resources/XRSimulationRuntimeSettings.asset.

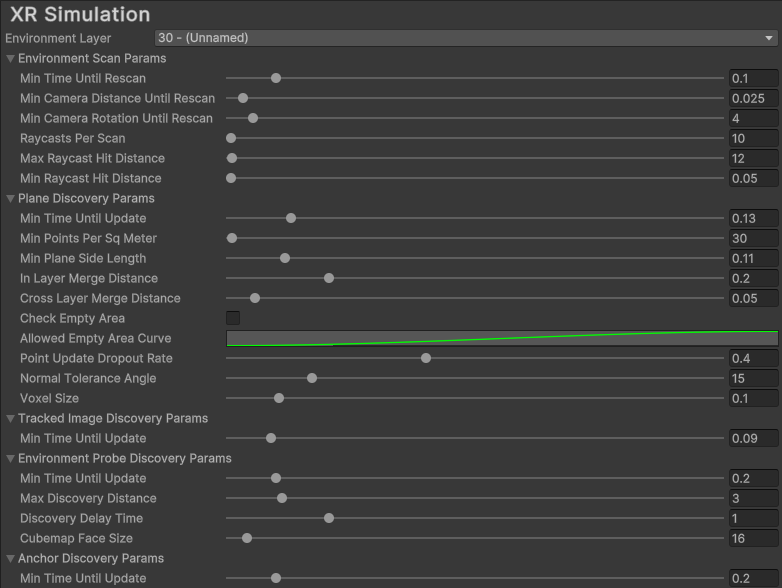

XR Simulation project settings.

Environment Layer

Setting	Description
Environment Layer	XR Simulation requires a dedicated layer to render the XR Simulation environment separately from your scene. That layer is specified here, and by default is layer 30.

Environment Scan Params

XR Simulation scans for point clouds and planes in the environment by raycasting against its meshes. The following Settings control that process:

Setting	Description
Min Time Until Rescan	Minimum time in seconds that must elapse between environment scans.
Min Camera Distance Until Rescan	Minimum distance in meters the camera must move before the next environment scan. The next environment scan will trigger on the first Update after Min Time Until Rescan has elapsed where the camera has either moved at least Min Camera Distance or rotated at least Min Camera Rotation.
Min Camera Rotation Until Rescan	Minimum angle change in degrees the camera must rotate before the next environment scan. The next environment scan will trigger on the first Update after Min Time Until Rescan has elapsed where the camera has either moved at least Min Camera Distance or rotated at least Min Camera Rotation.
Raycasts Per Scan	Total number of rays to cast in each environment scan. Higher values may impact system performance.
Max Raycast Hit Distance	Distance in meters from the camera beyond which feature points will not be detected.
Min Raycast Hit Distance	Distance in meters from the camera within which feature points will not be detected.

Plane Discovery Params

Performance tuning options for plane detection:

Setting	Description
Min Time Until Update	Minimum time in seconds that must elapse between plane discovery updates.
Min Points Per Sq Meter	Voxel point density, independent of voxel size.
Min Plane Side Length	A plane with x or y size less than this value in meters will be ignored.
In Layer Merge Distance	Planes within the same layer that are at most this distance in meters from each other will be merged.
Cross Layer Merge Distance	Planes in adjacent layers with an elevation difference of at most this distance in meters will be merged.
Check Empty Area	When enabled, planes will only be created if they do not contain too much empty area.
Allowed Empty Area Curve	Curve that maps the area of a plane to the ratio of area that is allowed to be empty.
Point Update Dropout Rate	Probability of dropping per-plane updates. If a random number between 0 and 1 is below this number, the update is dropped.
Normal Tolerance Angle	If the angle between a point's normal and a voxel grid direction is within this range, the point is added to the grid.
Voxel Size	Side length of each voxel in the plane voxel grid.

Tracked Image Discovery Params

Performance tuning options for image tracking:

Setting	Description
Min Time Until Update	Minimum time in seconds that must elapse between image tracking updates.

Environment Probe Discovery Params

Performance tuning options for discovery of automatically placed environment probes:

Setting	Description
Min Time Until Update	Minimum time in seconds between environment probe discovery updates.
Max Discovery Distance	Maximum distance in meters from the camera at which automatically placed environment probes can be discovered.
Discovery Delay Time	Time in seconds after an environment probe is discovered before it is added as a trackable.
Cubemap Face Size	Width and height in pixels of each face of each environment probe's Cubemap.

Anchor Discovery Params

Performance tuning options for discovery of automatically placed anchors:

Setting	Description
Min Time Until Update	Minimum time in seconds between anchor discovery updates.

XR Simulation Preferences reference

Go to menu Edit > Preferences > XR Simulation (Windows) or Unity > Preferences > XR Simulation (Mac) to set your preferences for XR Simulation. Preferences are saved under your Assets folder at XR/UserSimulationSettings/Resources/XRSimulationPreferences.asset.

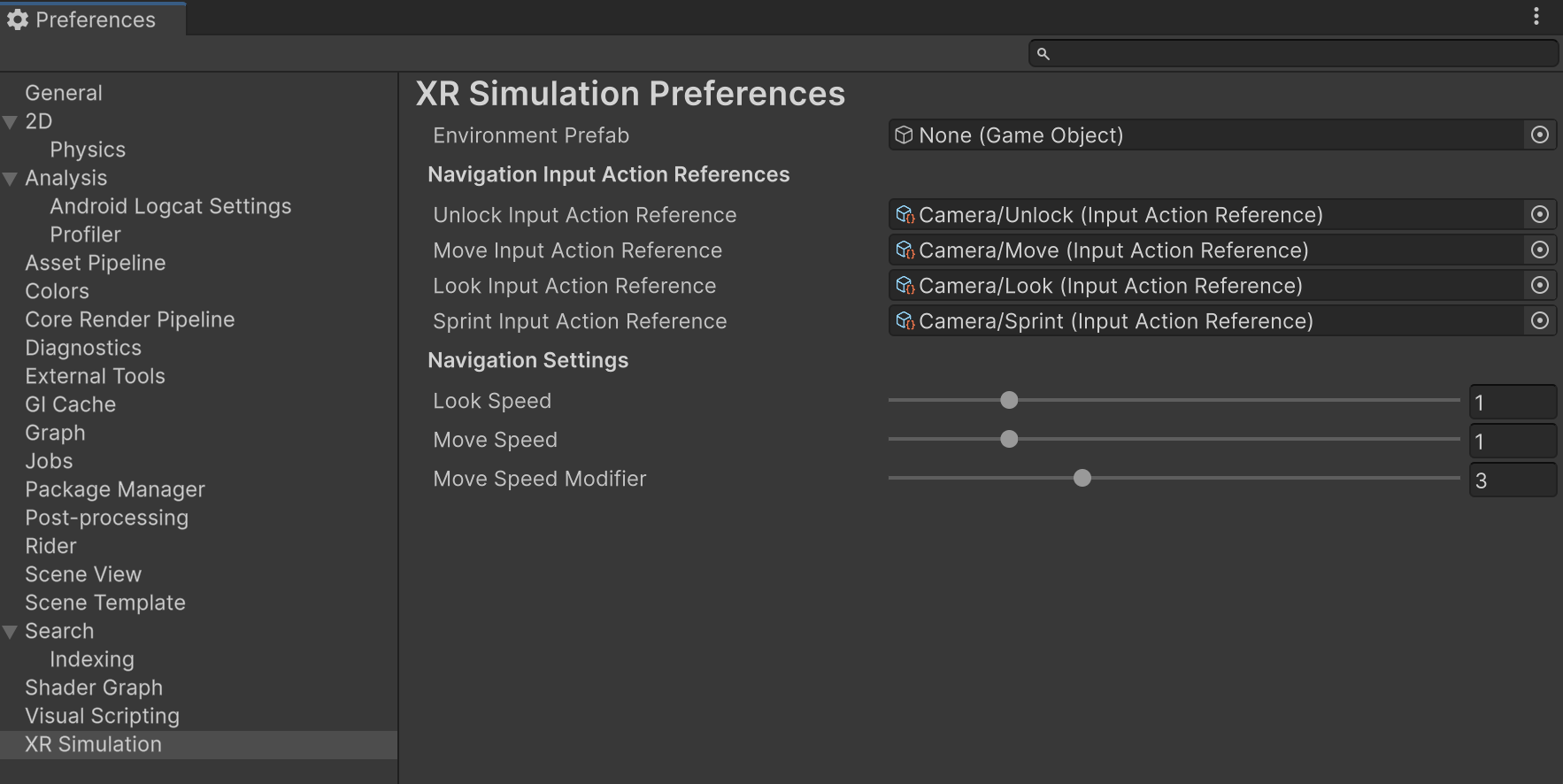

XR Simulation preferences.

Setting	Description
Environment Prefab	Stores the Prefab asset for the active XR Simulation environment. Note that it is easier to set this in the XR Environment view because the view's Environment list only includes environment Prefabs rather than every Prefab in the project.

Navigation Input Action References

Sets input bindings that will be used for navigation controls in XR Simulation (WASD, Q, E, and Shift keys and the mouse by default). Refer to Navigation controls for information about using the default controls or the Input System Manual to learn how to create your own custom input actions.

You can configure the following settings:

Setting	Description
Unlock Input Action Reference	Button type action that toggles navigation actions on/off. If not set, actions will be active by default.
Move Input Action Reference	Value (Vector 3) type action that controls movement.
Look Input Action Reference	Value (Delta/Vector 2) type action that controls rotation.
Sprint Input Action Reference	Button type action that activates fast movement.

Navigation Settings

Other navigation settings for configuring speed during XR Simulation:

Setting	Description
Look Speed	Controls the simulation camera's rotation speed.
Move Speed	Controls the simulation camera's base movement speed.
Move Speed Modifier	Modifies the simulation camera's base movement speed for faster movement.
